10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel

Name: 10BB Classic Bifacial Solar Pv Modules 535W560W Bifacial Monocrystalline Solar Panel
Brand: Sunport
Price: 0.18 USD

Model Number : AH7G

Place of Origin : Jiangsu, China

MOQ : 30pcs

Price : $0.18~$

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200000 Watt/Watts per Week

Delivery Time : To be negotiated

Packaging Details : pallet

Brand Name : Sunport

Certification : CGC，ISO9001:2015，TUV SUD，PV，CNAS，

Product name : MWT Full Black Solar Panles

Cell size : 144(24x6) / 10BB Mono / Half-cell

Panel Efficiency : 21.7%

Installation Module Dimension : 2277mm*1133mm*35mm

Type : PERC, Half Cell

Contact Now

Sunport Power SSD AH7G / 10BB 535W-560W Monocrystalline High-Efficiency Bifacial Solar Module Classic Solar Panel

The introduction of Sunport Solar Panels has dramatically changed the solar energy industry with their advanced and highly efficient solar panels. These innovative panels capture the power of sunlight and transform it into clean, renewable electricity that can be used for various applications. Sunport's focus on delivering eco-friendly and cost-effective solutions has established them as a leader in the solar energy field. Their pioneering solar panel technology combines high efficiency with an attractive design, making it a popular choice for both residential and commercial installations.

★ ISO 9001:2015 Quality Management System

★ ISO 14001:2015 Environment Management System

★ ISO 45001: 2018 Occupation Health Safety Management System

★ TUV NORD Certification

Electrical Characteristics at Standard Test Conditions(STC)
Spec/Model	Unit	SSD535 AH7G	SSD540 AH7G	SSD545 AH7G	SSD550 AH7G	SSD555 AH7G	SSD560 AH7G
Max-Power(Pm)	W	535	540	545	550	555	560
Power Tolerance	W	0~±5
Max-Power Voltage(Vm)	V	41.5	41.66	41.80	41.95	42.10	42.25
Max-Power Current(lm)	A	12.90	12.97	13.04	13.12	13.20	13.27
Open-Circuit Voltage(Voc)	V	49.50	49.63	49.75	49.90	50.05	50.20
Short-Circuit Current(lsc)	A	13.63	13.67	13.74	13.77	13.82	13.86
Module Efficiency(qm)	%	20.7	20.9	21.1	21.3	21.5	21.7

10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel

TECHNOLOGY COMPARISON

Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.

— Structural Feature —

MWT
Positive and negative electrodes are both on the rear side of solar cell

Conventional
Positive and negative electrodes are located on opposite sides of the cell

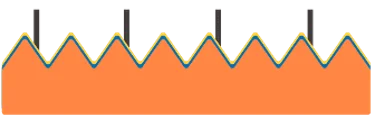

— Cell Structure —

MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %

Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited

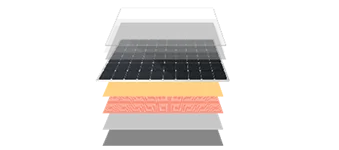

— Module Encapsulation —

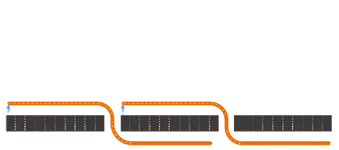

Replace conventional soldering with conductive foil and 2D encapsulation structure

Conventional Cells connected by string ribbons

10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel

FAQ

Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
